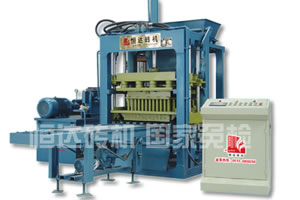

QT4-15 Block Making Machine

QT4-15 Block Making Machine

Description:
Hydraulic Block Making Machine with yield from 960 pieces/h to 5760 pieces/h
QT4-15 block machine is used to process cement, stone, sand, coal ash, construction waste and other materials and produces wall blocks, road bricks, and curbstones etc.
It is environment-friendly energy-saving. It has passed ISO9001 and CE certification. It has achieved a patent called the national utility model. Its all supporting molds have been heat treated and become durable.

Components:
Block machine, hydraulic pressure station, mold and electric control cabinet

Performance and Characteristics of QT4-15 Block Making Machine:
1. QT4-15 block making machine adopts hydraulic drive to products of high strength.
2. A short molding cycle
3. PLC intelligence control realizes dialogues between human and machine. The production line, an advanced line, integrates mechanism, electricity and liquid.
4. By replacing molds, hydraulic block making machine can produce different sizes of concrete bricks.

Operation and Precautions of QT4-15 Block Making Machine:
1. Storage hopper, when influenced by cement, is easy to condense into blocks. So use the new material as much as possible, and it's not a good idea to store the material too long,
2. Pay attention to feeding. There shouldn't be large aggregate or foreign objects whose diameters are more than 2 centimeters in the mixture, especially solid objects such as iron, which are easy to damage parts of the hydraulic block making machine.
3. Check whether the pallets are clean. If there are bonded pieces, remove them before you put the pallets into the store.
4. Strictly control the time of vibration. Adjust the amount of supply if necessary. From time to time pay attention to that whether the limit of every procedure is normal or whether the screws are loosened. If unexpected things happen, stop the hydraulic block making machine promptly and adjust it in time.
5. Clean the oil filter regularly, at least once a year. Check the actual amount of oil tank, add some if necessary.
6. Update all vibrating springs periodically.

Maintenance and Repair:
1. Check carefully and make sure that there is no loose fastener. Lubricate the parts according to the requirements.
2. Check the size of pallet. Abandon the ineligible ones, or the block making machine will be jammed and damaged.
3. Remove the residue and clean the box, pressure head and other parts of the machine each time.

Parameters of QT4-15 Block Making Machine:

yield 960 pieces/h(390 × 190× 190mm)
5760 pieces/h(240 × 115 × 53mm)
size of pallet 850×560×16mm(PVC pallet)
exciting force 70KN
vibration frequency 60HZ
forming way Table vibration and box vibration

control method

PLC
molding cycle 15S
power 32.5kW
weight 8T

Packaging and Transportation:
Naked outfit and container transportation
